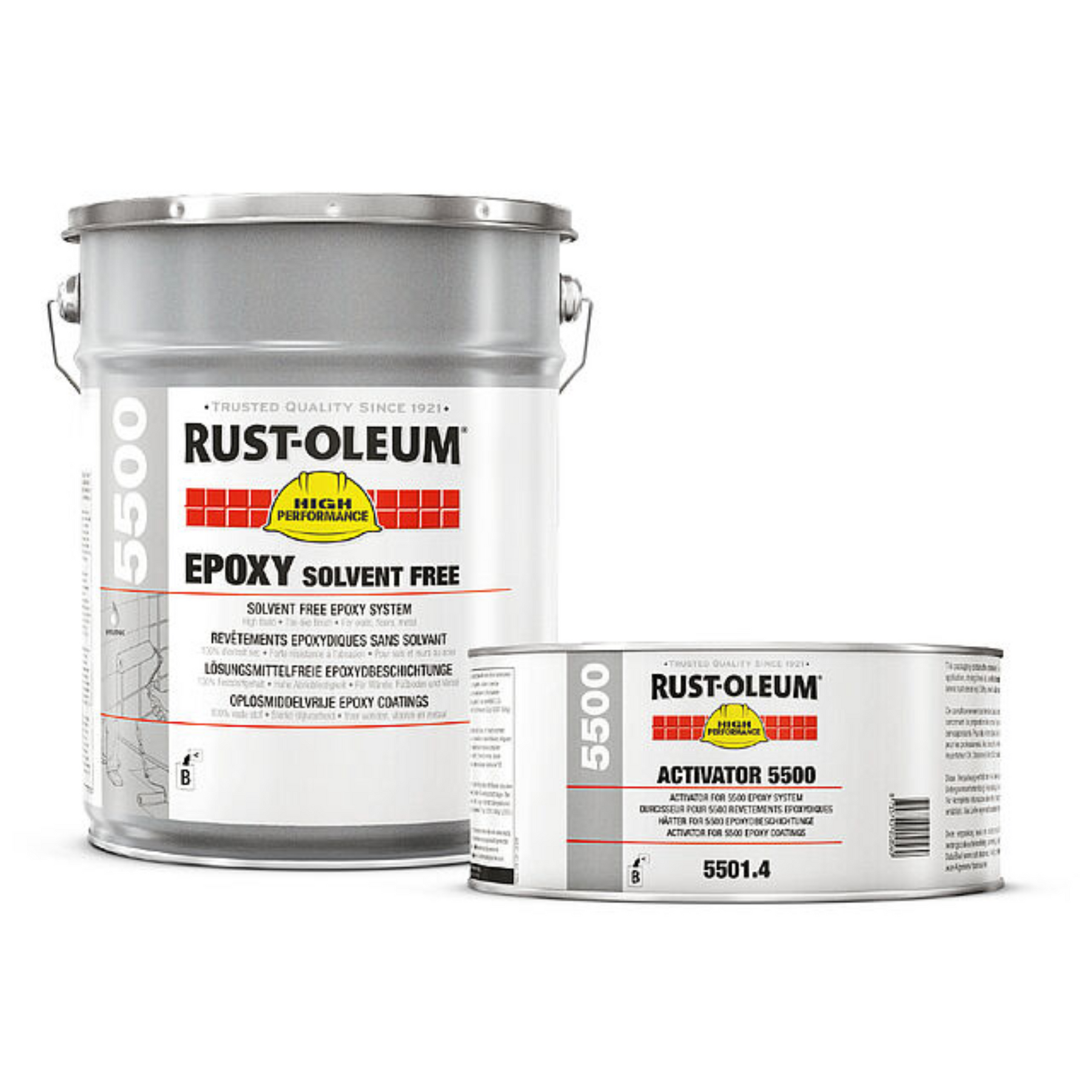

Rust-Oleum 5500 HB Solvent Free Epoxy

Rust-Oleum 5500 High Build Epoxy – Heavy-Duty Epoxy Floor Coating

Rust-Oleum 5500 High Build Epoxy is an ultra-durable, high build floor coating that delivers a hard, tile-like finish ideal for demanding environments. With a thickness of 150 microns per coat, it offers exceptional resistance to oils, solvents, and frequent chemical cleaning, making it perfect for use in garages, warehouses, workshops, showrooms, indoor car parks, and corridors.

Key Features:

• High Build Coating (150 Microns) – Thick, protective layer for maximum durability

• Exceptional Chemical Resistance – Handles frequent cleaning with chemicals

• Oil & Solvent Resistant – Perfect for industrial and automotive settings

• Hard as Ceramic Tiles – Extremely dense, tough finish

• Versatile Use – Ideal for a wide range of indoor floor applications

Application Details:

• Use Areas: Garages, warehouses, workshops, showrooms, corridors, and indoor car parks

• Coating Thickness: 150 microns per coat

• Finish: Hard, dense, tile-like surface

• Resistance: Chemicals, oils, and solvents

Surface Preparation

Remove grease, oil and all other surface contaminations by alkaline or high pressure
(steam) cleaning in combination with appropriate detergents. Sand intact coatings to
roughen the surface slightly. The surface must be clean and dry during application.
Concrete and masonry: New concrete or masonry should dry and cure for at least 30 days
before applying the coating system. Remove laitance, loose and unsound concrete or
deteriorated coatings preferably by abrasive blasting and repair surface defects with 5180
Epoxy Reapir Mortar or Epoxy Putty 5412. Very dense and smooth concrete should be
abrasive blasted or primed with Super Adhesive 3333 or 3366.

Steel: Remove loose rust, rust scale and deteriorated coatings by abrasive blasting to Sa
2½ (ISO 8501-1 : 1988), blast profile max. 100 µm. For immersion purposes, prepare to Sa
3 (ISO 8501-01 : 1988), blast profile max. 75 µm.

Technical Data

Density (g/cm³): 1,33
Gloss Level: Gloss
Solids Content in weight: 100%
Solids content in volume: 100%
Heat Resistance: 150°C (dry heat) - 50°C (immersion or wet heat)
Compressive Strength: 50 MN/m²
Tensile Strength: 10 MN/m²
Flexural Strength: 70 MN/m²
Mixing Ratio: Base : Activator = 2.54 : 1.46 (Volume)

Directions for Use

These products are supplied in pre-measured 'units' consisting of one can of pigmented
base material and one can of activator (5501). Stir individual components thoroughly
before mixing them together. Add activator to base material and mix thoroughly with a low speed mixer.

Data Sheets

Rust-Oleum 5500 HB Solvent Free Epoxy TDS

Rust-Oleum 5500 High Build Epoxy Activator MSDS

Rust-Oleum 5500 High Build Epoxy Base MSDS
